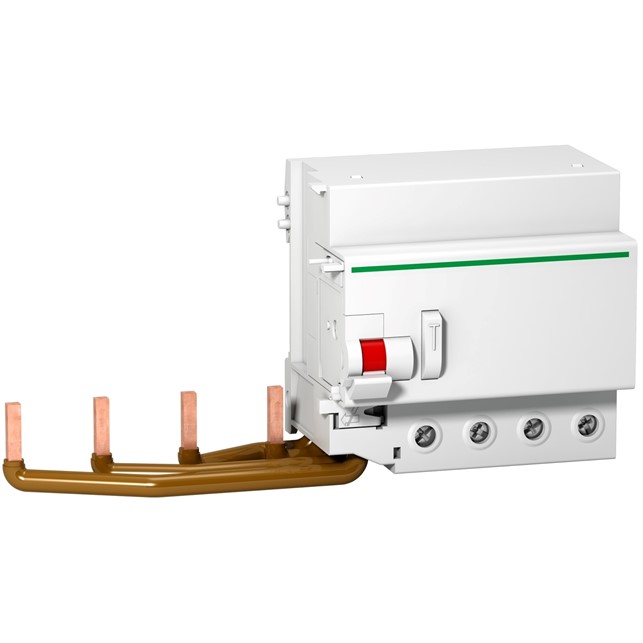

Schneider Vigi C120 – 4P – 300 mA (A9N18570)
Rp4.719.909
Deskripsi
Spesifikasi A9N18570
| Product or component type | Add-on residual current devices |
|---|---|
| device short name | Vigi C120 |
| Poles description | 4P |
| [In] rated current | 125 A |
| Network type | AC |
| Earth-leakage sensitivity | 300 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| Device location in system | Outgoer |
|---|---|
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 230…415 V AC 50/60 Hz |
| Residual current tripping technology | Voltage independent |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-2 |
| Mounting mode | Clip-on |
| Mounting support | 35 mm symmetrical DIN rail |
| Electrical connection to mcb | By screws |
| 9 mm pitches | 10 |
| Height | 95 mm |
| Width | 198 mm |
| Depth | 73 mm |
| Product weight | 0.58 kg |
| Colour | White |
| Mechanical durability | 20000 cycles |
| Connections – terminals | Tunnel type terminals 1…35 mm² flexible Tunnel type terminals 1…50 mm² rigid |
| Wire stripping length | 15 mm |
| Tightening torque | 3.5 N.m |
