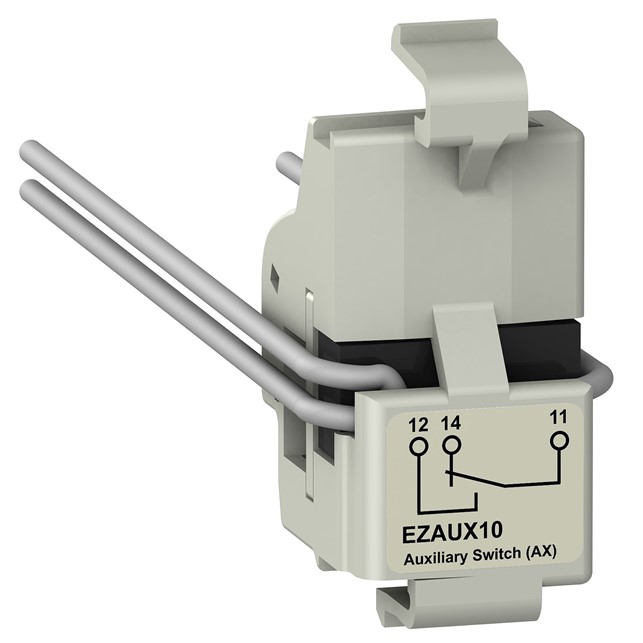

Schneider auxiliary switch AX, EasyPact EZC 100 (EZAUX10)
Rp313.420
Deskripsi
Spesifikasi
| Range of product | EZC100 |
|---|---|
| Range | EasyPact |
| device short name | AX |
| Product or component type | Switch |
| Device application | Signalling |
| Range compatibility | EasyPact (EZC) circuit breaker |
| Signal contacts composition | 1 NO/NC |
| Auxiliary contacts type | Standard |
|---|---|
| [Ith] conventional free air thermal current | 5 A |
| [Ie] rated operational current | AC-12: 3 A at 250 V AC 50/60 Hz AC-12: 5 A at 125 V AC 50/60 Hz AC-12: 5 A at 24 V AC 50/60 Hz AC-12: 5 A at 48 V AC 50/60 Hz AC-15: 2 A at 250 V AC 50/60 Hz AC-15: 3 A at 125 V AC 50/60 Hz AC-15: 5 A at 24 V AC 50/60 Hz AC-15: 5 A at 48 V AC 50/60 Hz DC-12: 0.2 A at 250 V DC DC-12: 0.4 A at 125 V DC DC-12: 2.5 A at 48 V DC DC-12: 4 A at 24 V DC DC-14: 0.2 A at 250 V DC DC-14: 0.4 A at 125 V DC DC-14: 1 A at 48 V DC DC-14: 3 A at 24 V DC |
| Minimum load | 10 mA at 24 V |
| Auxiliary connection terminal | Lead wire |
