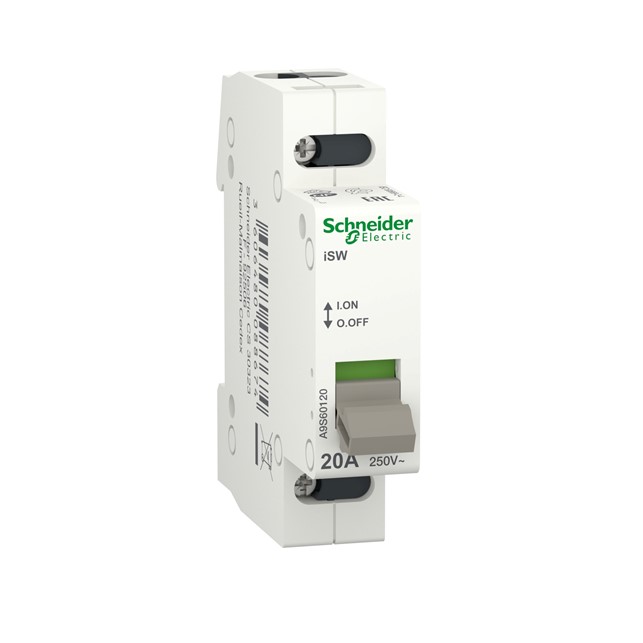

Schneider Acti9 – iSW switch – 1 pole – 20 A – 250V
Rp154.978
Deskripsi
Spesifikasi
| Range | Acti9 |
|---|---|
| Product name | Acti9 iSW |
| Product or component type | Switch disconnector |
| device short name | ISW |
| Device application | Control |
| Poles description | 1P |
| Utilisation category | AC-22A |
| Suitability for isolation | Yes |
| [Ie] rated operational current | 20 A at 250 V AC 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 250 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 250 V AC 50/60 Hz conforming to EN/IEC 60669-2-4 |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Control type | Toggle |
| Local signalling | ON/OFF indication |
| Contact position indicator | Yes |
| Mounting mode | Fixed |
| Mounting support | DIN rail |
| 9 mm pitches | 2 |
| Height | 77 mm |
| Width | 18 mm |
| Depth | 70 mm |
| Colour | Grey |
| Mechanical durability | 300000 cycles |
| Electrical durability | 30000 cycles |
| Connections – terminals | Tunnel type terminals – 10 mm² – rigid Tunnel type terminals – 10 mm² – flexible Tunnel type terminals – 10 mm² – flexible with ferrule |
| Wire stripping length | 9 mm |
| Tightening torque | 1.2 N.m |
