Saklar Schneider Vivace -2 way switch 16 AX 250 V -1 module- White

Name: Saklar Schneider Vivace -2 way switch 16 AX 250 V -1 module- White
SKU: KB34S_WE_G3
Availability: InStock

Rp105.186

Compare

Add to wishlist

SKU: KB34S_WE_G3 Kategori: Electrical, Saklar & Stop Kontak, Schneider, Schneider Vivace Tag: Schneider, schneider vivace

Deskripsi

Deskripsi

Specifications

Range	Vivace
Product or component type	Switch
device short name	KB34
Device application	Lighting
Switch function	2-way

Complementary
Device presentation	Complete mechanism
Actuator	Rocker
Number of gangs	4 gangs
Colour tint	White
Material	Polycarbonate: grid plate Polycarbonate: surround Nylon: base Polycarbonate: dolly Nylon: actuator Silver plated copper: bridge Brass: terminal cover
Surface finish	Glossy
Surface treatment	Untreated
Type of packing	Box
Quantity per set	8
Sale per indivisible quantity	1
Projecting depth	8 mm
device mounting	Flush
Mounting support	Wall mounted
Fixing mode	By screw M3.5
Embedding depth	24 mm
Rated current	10 AX at 250 V AC, inductive 10 A at 250 V AC, resistive
[Ue] rated operational voltage	250 V AC
Network frequency	50 Hz
Contacts material	Brass and phosphor bronze
Connections – terminals	12 screw terminals
Terminal identifier	COM L2 L1
Tightening torque	0.4 N.m
Clamping connection capacity	<= 2 x 2.5 mm² for rigid or stranded cable(s)
Wire stripping length	12 mm
Dielectric strength	2000 V
Minimum load breaking capacity	200 operations 1.25 In and 1.1 Un
Width	86 mm
Height	86 mm
Depth	36.5 mm
Product weight	0.0829 kg

Environment
standards	IEC 60669
Product certifications	SNI SIRIM
Ambient air temperature for operation	-5…40 °C
Relative humidity	0…95 %
Environmental characteristic	Indoor use
IP degree of protection	IP20

DATASHEET Vivace_KB34S_WE_G3.pdf

[vc_row full_width="stretch_row" css=".vc_custom_1493881945773{margin-bottom: -40px !important;background-color: #f9f9f9 !important;}"][vc_column css=".vc_custom_1488538101973{padding-top: 0px !important;padding-bottom: 0px !important;}"][woodmart_brands orderby="" order="" hover="alt" style="carousel" per_row="7" hide_pagination_control="yes" hide_prev_next_buttons="yes" wrap="yes" ids=""][/vc_column][/vc_row]

Saklar Schneider Vivace -2 way switch 16 AX 250 V -1 module- White

Specifications

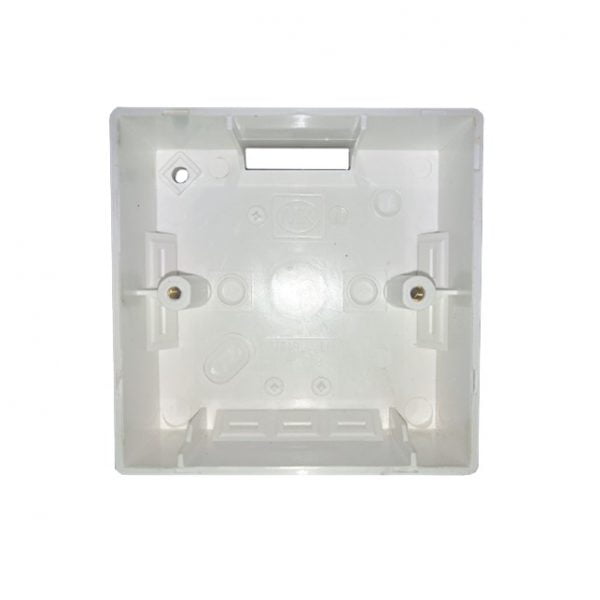

OUTBOW DUS MK 31019WHI 1G SURFACE BOX 32MM DEPTH

OUTBOW DUS SCHNEIDER E238 MOUNTING BOX W/O TERM

SAKLAR DOUBLE GRACIO BROCO 4162 2G 1W CREAM

SAKLAR SINGLE GRACIO BROCO 4161 1G 1W WHITE

STOP KONTAK DATA CAT 5 BROCO GALLEO G174-55S WHITE

STOP KONTAK TELP BROCO GALLEO G171-55S WHITE

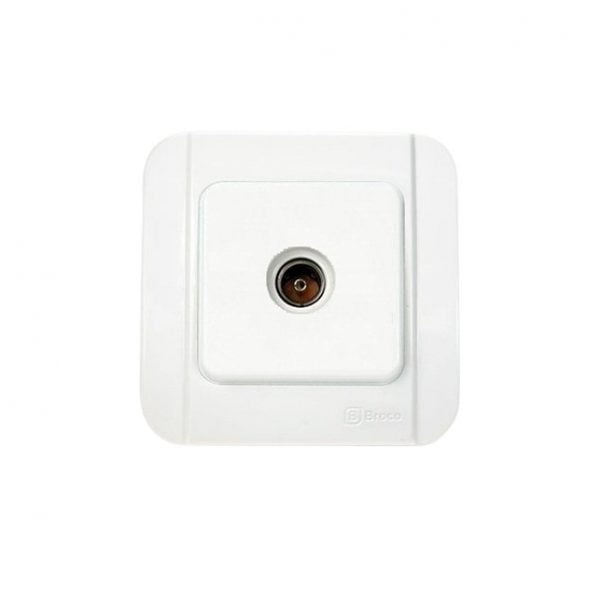

STOP KONTAK TV BROCO GALLEO G183-55S WHITE

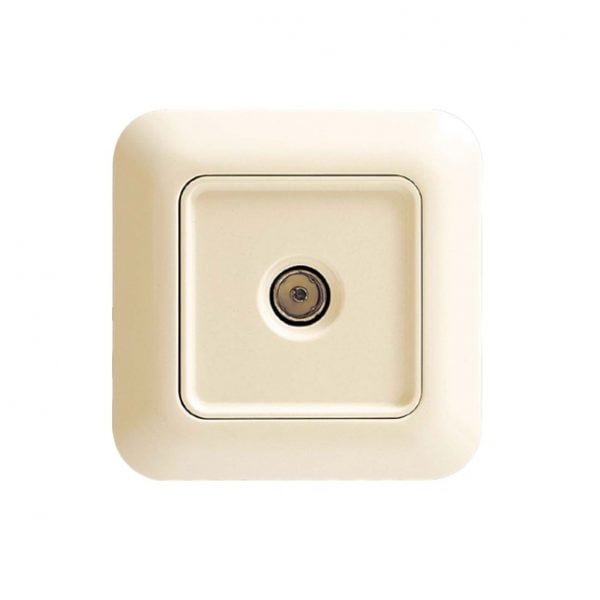

STOP KONTAK TV GRACIO BROCO 4183 1G CREAM
