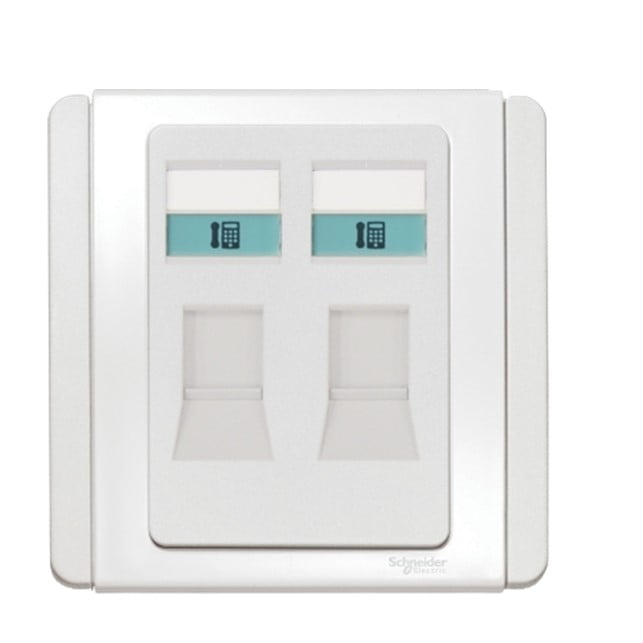

OUTLET TELP & DATA NEO E3032TD_WW 2 GANG SOCKET WHITE SCHNEIDER
Rp413.566
Deskripsi
Specifications
| range | Neo C-Metro |
|---|---|
| product or component type | Data/telephone socket |
| colour tint | White |
| rated current | 1.5 A at 125 Vrms AC |
|---|---|
| communication network category | Voice: 3e Data: 5e |
| insulation resistance | >= 1000 MOhm for voice >= 200 mOhm for data |
| contact resistance | Data: 1000 µOhm Voice: 100000 µOhm |
| number of gangs | 2 gangs |
| minimum return loss | 23 dB |
| AWG gauge | Data: AWG 26…AWG 22(4 twisted pair cables) Voice: AWG 26…AWG 24(2 twisted pair cables) |
| contacts material | Contact: phosphor bronze for voice module Contact: phosphor bronze with gold plating for data module IDC contact: phosphor bronze with nickel plating for data module IDC contact: phosphor bronze with tin plating for voice module |
| material | Voice: PBT 15 % FG insert PC housing Polycarbonate plastic part |
| device mounting | Surface Flush |
| width | 87 mm |
| height | 87 mm |
| depth | 36 mm |
| embedding depth | 28.4 mm |
