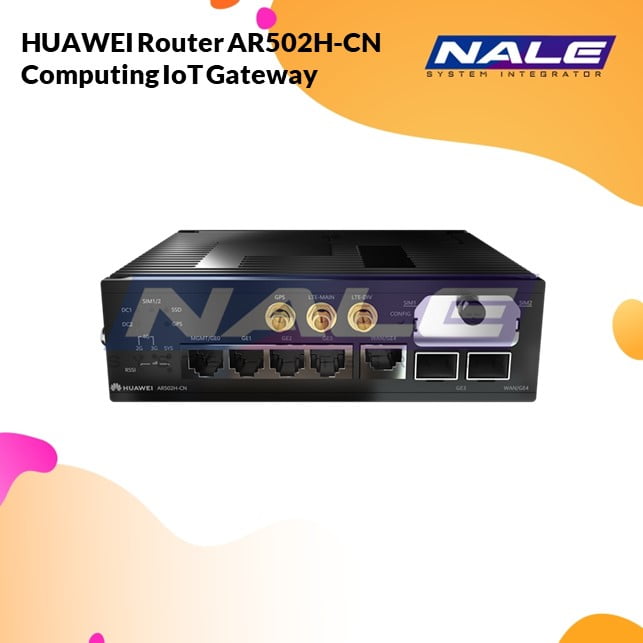

HUAWEI Router AR502H-CN IComputing IoT Gateway
Rp20.542.455
Deskripsi
AR502H-CN Specification |
|
| Processor | ARM 4-core A53, 1GHz |
| DDR | 2GB, DDR4 |
| Flash | 2GB, SLC NAND |
| Basic Skills | Support install, uninstall, start, stop container Support install, uninstall, start, stop APP Support APP incremental upgrade |
| Advanced Features | Supports allocating CPU cores to containers Supports adjustment of container storage and memory resources Supports the deployment of multiple containers and provides a message bus between containers |
| Security Function | Support container disk encryption Support container and APP signature verification |
| IoT Protocol | Support MQTT, CoAP |
| Secondary Development Support | Support standard Debian OS development environment and provide secondary development guidance Support mainstream programming languages, such as C/C++ |
| 5G | – |
| 4G/LTE | FDD LTE: Band 1/3/5/8 TDD LTE: Band 38/39/40/41 |
| 3G | HSPA+/UMTS: Band 1/5/8/9 |
| Fixed Ethernet Interface | 3 * GE electricity, 10/100/1000Mbit/s adaptive 2 * GE combo |
| Fixed Serial Port | 2 * RS485 or RS232 (isolated, 485 and 232 are switched by software) |
| Alarm Port | 1 DI (passive contact input) 1 DO (industrial terminal, support normally open and normally closed) |
| Power Supply | Dual DC redundancy: 9.6~60V (industrial terminal) |
| Operating Temperature | –40°C to +70°C |
| Dimensions (W*D*H) | 150*133*44mm |
AR500 Series Enterprise Routers
- AR500 Mainframe : 50010576 AR502H “AR502H 2*RS485(or 2*RS232),1*DI/DO,3*GE (10/100/1000M RJ45),2*GE COMBO,1*LTE (dual SIM),1*USB3.0,GPS/GLONASS/BDS,9.6-60VDC”
- Power : 02131664 PAC60S12-AN “AC-DC Power,-40degC,70degC,90V,290V,12.2V/5A,PAC60S12-AN”
Installation Materials
- AR,Trunk Cable & Converter 04151479 CPCTB0301 “Power Cable,3m,18AWG,TB2PINI,18UL1015R+18UL1015B,TB2PIN-I”
- External Cable Suite,Electric Cable 25030398 C25ELECBK “Power Cable,300V/500V,60227 IEC 53(RVV),3×1.5mm^2,Black(3Cores:Brown,Blue,Yellow/Green),19.5A,Outdoor Cable,CCC,CE (Unit:meter)”
- Accessories of Cabinet or Chassis 27012152 ASMAM0006 “Isotropic Antenna,3m,698MHz-960MHz/1710MHz-2690MHz,SMA-J”
- Accessories of Cabinet or Chassis 21123514 DINRAIL002 mounting base
Technical Support Service
- “AR502H 2*RS485(or 2*RS232),1*DI/DO,3*GE (10/100/1000M RJ45),2*GE COMBO,1*LTE (dual SIM),1*USB3.0,GPS/GLONASS/BDS,9.6-60VDC_Co-Care Basic AR502H_12Month(s)”
