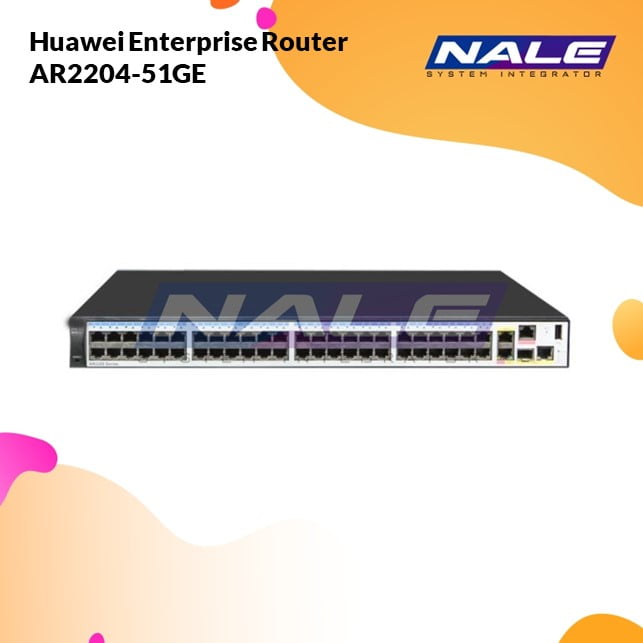

Huawei Enterprise Router AR2204-51GE
Rp33.033.600
Deskripsi
| System parameters | |
| Processor | Dual-core, 1 GHz |
| Memory | 512 MB |
| Flash | 512 MB |
| Micro SD card (default sd1) | None |
| Hard disk | Not supported |
| Dimensions | |
| Dimensions (H x W x D) |
|
| Power specifications | |
| Rated AC input voltage | 100 V AC to 240 V AC, 50 Hz/60 Hz |
| Maximum AC input voltage | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current | 2 A |
| Maximum output power | 60 W |
| RPS power supply | Not supported |
| Power consumption (empty chassis) | |
| Typical power consumption | 25 W |
| Maximum power consumption | 35 W |
| Heat dissipation | |
| Fans | Built-in, unpluggable fans |
| Airflow (facing the front panel) | Left to right |
| Interface density | |
| Management interface | 1 (RJ45) |
| Console interface | 1 (RJ45) |
| USB 2.0 interface | 1 |
| Service interfaces | WAN interfaces: two GE electrical interfaces and one GE combo interface
LAN interfaces: 48 GE electrical interfaces |
| Extended slots | 4xSIC |
| Environment parameters | |
| Operating temperature | 0°C to 45°C (32°F to 113°F)
NOTE: When the altitude is 1800 m-5000 m (5906ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 300 m (984 ft.). |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Operating relative humidity | 5% to 95%, noncondensing |
| Operating altitude | < 5000 m (16404.2 ft.) |
