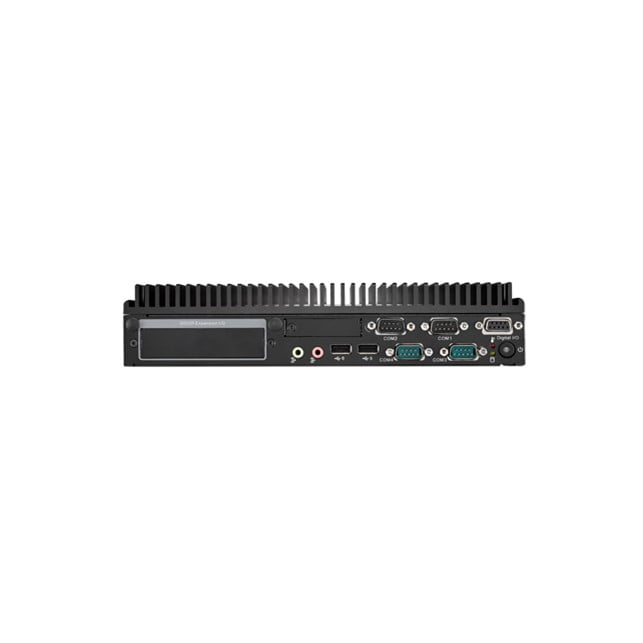

Advantech ARK-2250L A2 A201-1 i7-6600U DDR4 2.6GHz (ARK-2250L-U6A2)
Deskripsi
SPESIFICATION
| Category | Attribute | Value |
| I/O | Digital I/O | 8bit |
| I/O | Serial port | 4 x RS-232/422/485 port, support auto-flow control |
| I/O | USB | 4 x USB 3.0, 2 x USB 2.0 |
| Memory | Max. Capacity | 16 GB |
| Memory | Socket | 1 x 260-Pin SO-DIMM |
| Memory | Technology | DDR4 2133MHz SO-DIMM |
| Processor | BIOS | AMI UEFI 128 Mbit |
| Processor | Core Number | 2 |
| Processor | CPU | Intel Core i3 6100U |
| Processor | Frequency | 2.3 GHz |
| Processor | L3 Cache | 3 MB |
| Storage | HDD | Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) |
| Storage | SSD | 1 x full size mSATA socket (CN15, shared with mPCIe) |
| Environment | Operational Temperature | With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow |
| Environment | Storage Temperature | -40 ~ 85° C (-40 ~ 185° F) |
| Power | Consumption | Typical 6.92 W, Max. 41.72 W |
| Power | Input Voltage | 12 VDC (9 ~ 36 VDC as option) |
| Power | Power Adaptor | AC to DC, DC12V/5A, 60 W (Optional) |
| Power | Power Type | ATX |
| Ethernet | LAN1 | 10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| Ethernet | LAN2 | 10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
| Graphics | Controller | Intel HD Graphics 520 |
| Graphics | Dual Display | Yes, VGA + HDMI |
| Graphics | Graphic Engine | DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode |
| Graphics | HDMI | HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz |
| Graphics | Triple Display | VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China) |
| Graphics | VGA | Up to 1920 x 1200 @ 60Hz (No hotplug support) |
| Audio | Interface | Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
| Environment | Relative Humidity | 95% @ 40° C (non-condensing) |
| Environment | Shock During Operation | With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
| Environment | Vibration during Operation | With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Certification | EMC | CE/FCC Class B, CCC, BSMI |
| Certification | Safety Certifications | UL, CCC, BSMI |
| Expansion | iDoor Module | 1 set (Optional) |
| Expansion | Mini PCIe | 2 x full size Mini PCIe with (CN15 with SIM holder) |
| Mechanical | Construction | Aluminum housing |
| Mechanical | Dimensions | 260 x 54 x 140.2 mm (10.24″ x 2.13″ x 5.52″) |
| Mechanical | Mounting | Din-Rail mounting, Desk/wall-mounting, VESA mounting |
| Mechanical | Weight | 2.3 kg (5.07 lb) |
| Others | Watchdog timer | 255 levels timer interval, setup by software |
| Software Support | Linux | Support by project |
| Software Support | Microsoft Windows | Windows 10, Windows 8.1, WES7, Windows 7 |
Informasi Tambahan
| Brand | Advantech |
|---|
